In the beauty equipment industry, product appearance directly influences customer trust and brand positioning. For many OEM beauty device projects, clients not only require structural reliability, but also demand premium visual quality, smooth surface finishing, and precise assembly details. This custom beauty device housing project from Zhongrongda combined a large transparent acrylic cover with an ABS injection molded base, creating significant manufacturing and assembly challenges.
At Zhongrongda, we helped our customer manufacture a high-gloss custom beauty machine enclosure using acrylic vacuum forming and ABS injection molding technology, while solving issues related to transparency, dimensional accuracy, structural locking, and overall appearance consistency.
Project Overview
This project was developed for a beauty device head cover assembly with the following dimensions:
- Length: 420mm
- Width: 630mm
- Height: 320mm
The product structure consists of:
- Transparent acrylic upper cover formed by vacuum thermoforming
- ABS lower base produced through injection molding
- Snap-fit structural assembly between the two components
The client required:
- High transparency
- Smooth curved appearance
- Precise fitting between parts
- Durable locking structure
- Premium cosmetic finish
- Stable mass production consistency
Product Structure and Manufacturing Process

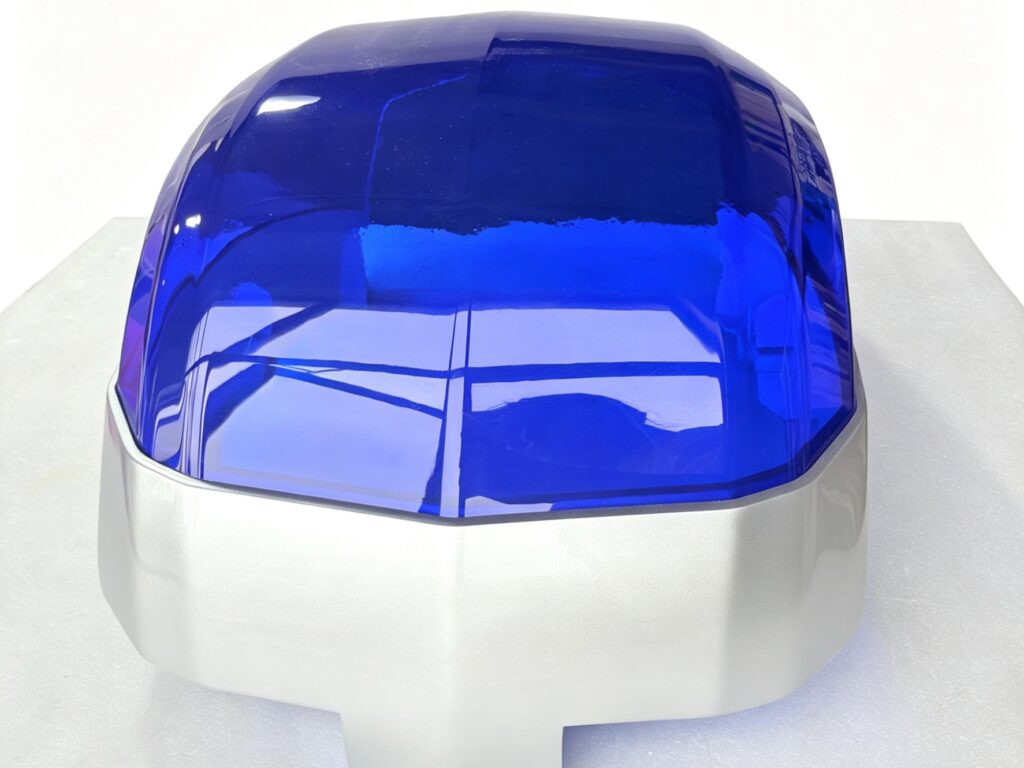

1. Acrylic Transparent Cover — Vacuum Forming Process
The upper housing uses transparent acrylic sheet material. Because the product includes large curved surfaces and deep forming geometry, standard thermoforming methods could not guarantee optical quality or uniform wall thickness.
At Zhongrongda, we optimized the vacuum forming process through multiple engineering adjustments:
- Precise heating temperature control
- Multi-zone heating calibration
- Controlled vacuum pressure timing
- Mold surface polishing optimization
- Protective film processing during trimming
The acrylic sheet was heated and vacuum formed into a smooth curved shell while maintaining optical transparency and surface gloss.

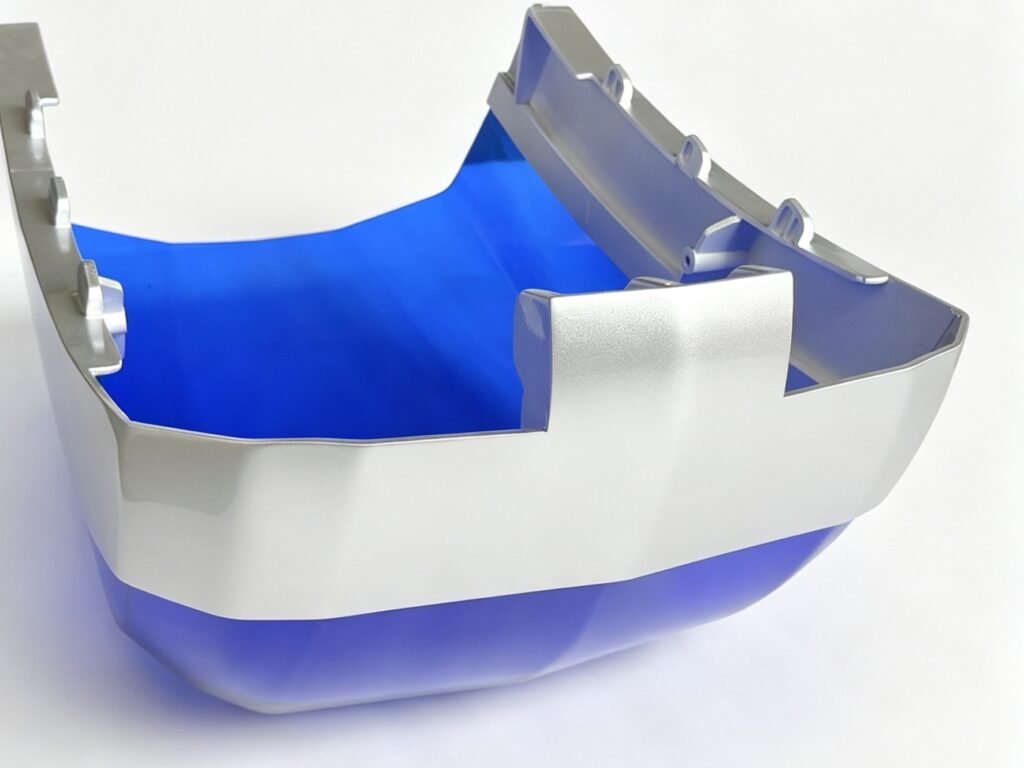

2. ABS Base — Injection Molding Structure
The bottom housing was manufactured using ABS injection molding. The structure included:
- Integrated snap-fit locking system
- Reinforcement ribs
- Assembly positioning features
- Stable support geometry
To improve dimensional stability and reduce deformation, we optimized:
- Mold gate position
- Cooling channel layout
- Injection pressure balance
- Shrinkage compensation parameters
This ensured that the ABS base maintained consistent dimensions for assembly with the acrylic upper cover.
3. Snap-Fit Assembly Solution
Instead of using excessive adhesive bonding, Zhongrongda designed a structural snap-fit assembly system between the acrylic cover and ABS base.
This approach improved:
- Assembly efficiency
- Product aesthetics
- Long-term durability
- Serviceability
- Production consistency
The final housing assembly achieved stable locking strength while minimizing visible gaps.
Key Manufacturing Challenges and Zhongrongda Solutions
Challenge 1: Acrylic Vacuum Forming on Large Curved Surfaces
Large acrylic covers are difficult to thermoform without visual defects. During early testing, several common issues appeared:
- Uneven material stretching
- Wall thickness variation
- Surface haze
- Orange peel texture
- Transparency reduction
- Stress marks
- Scratches during trimming
These defects directly affect the appearance quality of beauty equipment housings.
Zhongrongda Solution
To solve these problems, our engineering team adjusted both tooling and forming parameters:
Optimized Heating Distribution
We used multi-zone temperature control to ensure the acrylic sheet softened evenly across all curved areas.
Mold Surface Polishing
The forming mold surface received mirror-level polishing treatment to reduce surface texture transfer during forming.
Controlled Forming Speed
By balancing vacuum pressure timing and forming speed, we reduced material overstretching in corner areas.
Protective Surface Handling
Additional protection was added during CNC trimming and post-processing to prevent scratches and stress whitening.
As a result, the final transparent cover achieved:
- High optical clarity
- Smooth curved geometry
- Uniform appearance
- Improved light transmission
- Stable production repeatability
Challenge 2: Dimensional Accuracy Between Vacuum Formed and Injection Molded Parts
One of the biggest challenges in hybrid plastic housing manufacturing is the dimensional difference between thermoformed acrylic and injection molded ABS parts.
Because the two materials have different shrinkage characteristics, the following issues can occur:
- Uneven assembly gaps
- Misaligned edges
- Snap-fit interference
- Poor seam alignment
- Visible assembly defects
Zhongrongda Solution
Our engineering team used multiple verification steps during mold development.
3D Data Compensation
We adjusted CAD compensation values based on actual forming shrinkage measurements from sample testing.
Prototype Validation
Before mass production, we produced several fitting prototypes to verify assembly accuracy.
Assembly Tolerance Optimization
Critical snap-fit areas were redesigned with controlled tolerance ranges to improve consistency.
CNC Fixture Inspection
Inspection fixtures were used during production to maintain stable dimensional control.
This process allowed us to achieve:
- Uniform assembly seams
- Stable snap-fit engagement
- Improved cosmetic alignment
- Better assembly efficiency
Challenge 3: Structural Strength and Sealing Reliability
The customer originally considered adhesive bonding, but glue-based assembly created several risks:
- Glue overflow marks
- Aging and cracking
- Weak bonding after long-term use
- Difficult repair and maintenance
Zhongrongda Solution
We developed a mechanical snap-fit assembly structure combined with local reinforcement positioning.
Benefits included:
- Cleaner appearance
- Reduced glue contamination risk
- Better long-term durability
- Faster assembly process
- Improved maintenance capability
Additional internal structural ribs were added to improve housing stability during operation.
Challenge 4: Surface Quality and Appearance Consistency
For beauty device products, appearance quality is often more important than purely structural performance.
However, combining acrylic thermoforming and ABS injection molding can create visible inconsistencies such as:
- Different surface gloss levels
- Color variation
- Sink marks
- Flash lines
- Stress whitening
- Texture mismatch
Zhongrongda Solution
We controlled appearance quality from multiple production stages:
Material Selection Matching
The acrylic transparency and ABS color tone were carefully matched to maintain visual consistency.
Mold Maintenance Control
Regular mold polishing and maintenance reduced injection molding defects such as flash and sink marks.
Post-Processing Inspection
Every assembly underwent visual inspection under controlled lighting conditions.
Surface Protection Packaging
Protective film and customized packaging prevented scratches during transportation.
The final product achieved a premium cosmetic appearance suitable for high-end beauty equipment brands.
Why Clients Choose Zhongrongda for Custom Plastic Enclosures
At Zhongrongda, we focus on solving real manufacturing problems for complex plastic housing projects.
Our capabilities include:
- Acrylic vacuum forming
- ABS injection molding
- CNC machining
- Rapid prototyping
- Structural optimization
- Surface finishing
- Assembly solutions
- Low-volume to mass production
We help customers reduce development risks while improving product quality and production stability.
For projects involving transparent covers, curved housings, or hybrid plastic assembly structures, our engineering experience allows us to identify manufacturing risks early and provide practical solutions.
Applications of Similar Housing Structures
This manufacturing solution can also be applied to:
- Beauty equipment housings
- Medical device enclosures
- Cosmetic machine covers
- Laser equipment shells
- LED therapy device covers
- Diagnostic equipment enclosures
- Smart device housings
- Consumer electronics covers
